Star-TED Lab Specs

# A07: Class Offerings

Scenario needs Instructor Approval

This scenario is available for selection but instructor approval must be obtained.

You must do two web form pages (Query and CRUD) based on the following database tables and views.

ERD for A07

# CRUD

ClassOfferings - Single Item Create/Read/Update/Delete

  • Only ClassOfferings for current or future semesters can be updated.

  • ClassOfferings cannot be physically deleted; clicking the [Delete] button should cancel the ClassOffering. ClassOfferings have a cancel flag which is set to indicate the classoffering is cancelled. Set this flag in your BLL method, not in the code-behind of the form.

  • Include a not-mapped property called FullName when creating the Employee entity definition. This property must return a string containing the LastName, Firstname of the employee.

  • Search Filters:

    • Filtering for ClassOffering lookup: Course (Courses filter by Program) for course list, select course to get class offering list, select from this list for editing

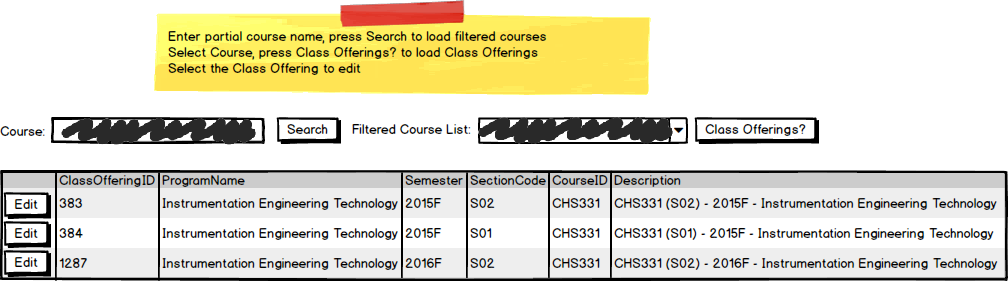

    Form A Search Filter

  • Add/Edit Detail Filters:

    • Use Offering list filtering for Offerings lookup: select from a list offerings of specific Offering
    • Use employee firstname/lastname filtering for foreign key EmployeeID

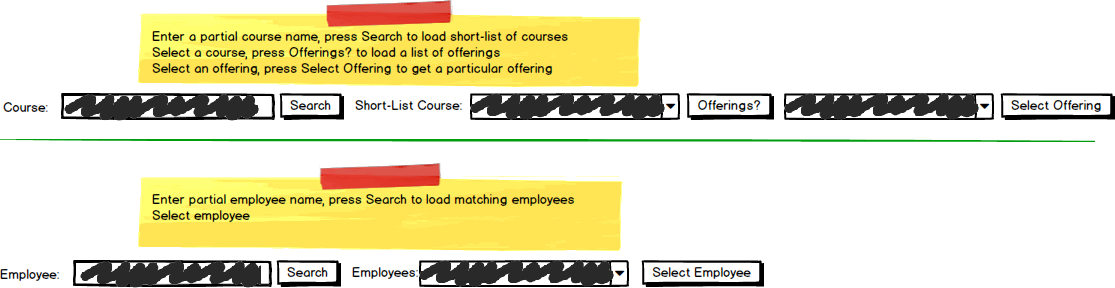

Form A Search Filter

# Query

ClassOfferings by Course - GridView Lookup with ObjectDataSource controls

  • Avoid the use of code-behind in the form wherever possible.
  • Use a two step filter to find the course id. Find a list of courses to select from using the partial course name.
  • Display the Employee in the GridView using a Drop-Down List control. Show the Employee's full name.

The following specialty stored procedures are available:

  • Courses_FindByPartialName - Returns zero or more Courses whose Course ID or Description matches a partial name
  • CurrentClassOfferings_FindByCourse - Returns zero or more rows from the CurrentClassOfferings view for the supplied course ID.
  • CurrentOfferings_FindByCourse - Returns zero or more rows from the CurrentOfferings view for the supplied course ID.
  • Employees_FindByPartialName - Returns zero or more Employees whos first or last name includes the supplied string
